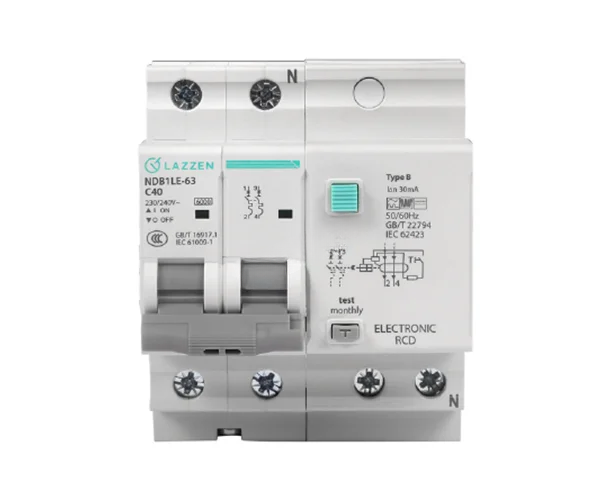

NDB1LE-63 Type B RCBO, Nader
Model: NDB1LE-63
Key specifications
- Certificate CCC, CB, CE, TUV
- Poles 1PN, 2P, 3P, 3PN, 4P
- Rated operational voltage Ue AC230/240V, AC400/415V
- Residual tripping current type B type
- Instantaneous tripping type Type C (6A~63A), Type D (6A~40A)
- Rated current In 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Technical parameters
Standard | GB/T 22794, IEC 62423, EN 62423 | |
Certificate | CCC, CB, CE, TUV | |
Number of product poles | 1PN(N pole continuous),2P | 3P,3PN(N pole continuous),4P |
Rated operational voltage Ue(V) | AC230/240V | AC400/415V |
Rated insulation voltage Ui (V) | 500V | |
Rated impulse withstand voltage Uimp(kV) | 4kV | |
Residual tripping current type | B type | |
Instantaneous tripping type | Type C(6A~63A), Type D(6A~40A) | |
Rated current In(A) | 6, 10, 16, 20, 25, 32, 40, 50, 63 | |
Icu(kA effective value) | 6kA | |
Ics(kA effective value) | 6kA | |
Rated residual operating current I△n(mA) | 30mA | |
Rated frequency(Hz) | 50/60Hz | |
Electrical life | 10000 times | |
mechanical life | 20000 times | |
