Key Switches — 7 products

LA39 Series

5 products

LA39-A(22mm) Series Key Switches, APT

Rated insulation voltage: AC660V. Rated thermal current: 10A. Electrical endurance: ≥600,000 times. Rated current: For quick-action type, AC-15 24V/10A, 48V/10A, 110V/5A, 220V/2.5A, 380V/1.5A, 660V/0.8A DC-13 24V/3.6A, 48V/1.8A, 110V/0.8A, 220V/0.4A, 440V/0.2A

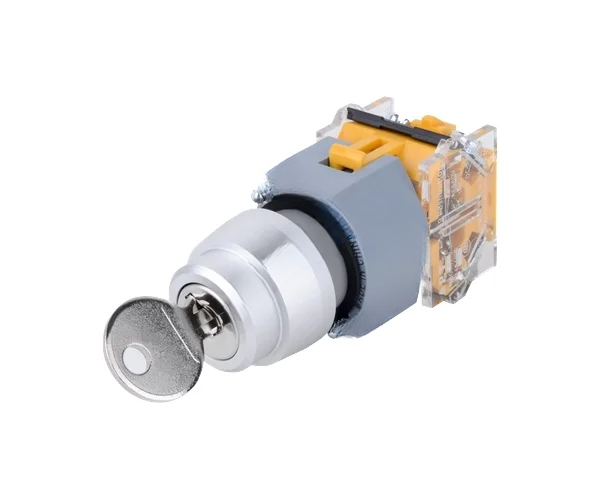

LA39-B(22mm) Series Key Switches, APT

Rated insulation voltage: AC660V. Rated thermal current: 10A. Electrical endurance: ≥600,000 times. Rated current: For quick-action type, AC-15 24V/10A, 48V/10A, 110V/5A, 220V/2.5A, 380V/1.5A, 660V/0.8A DC-13 24V/3.6A, 48V/1.8A, 110V/0.8A, 220V/0.4A, 440V/0.2A

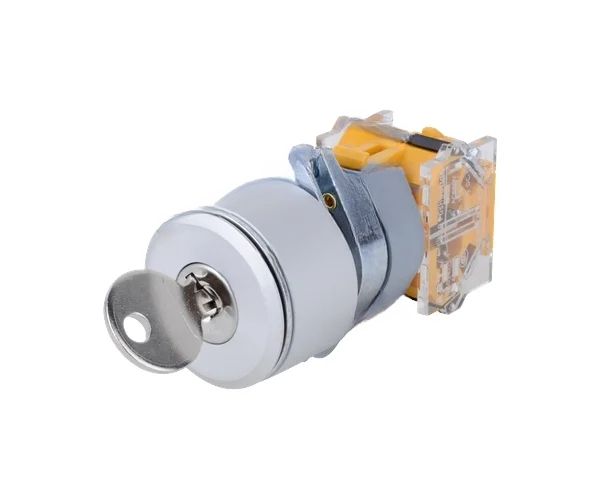

LA39-C(30mm) Series Key Switches, APT

Rated insulation voltage: AC660V. Rated thermal current: 10A. Electrical endurance: ≥600,000 times. Rated current: For quick-action type, AC-15 24V/10A, 48V/10A, 110V/5A, 220V/2.5A, 380V/1.5A, 660V/0.8A

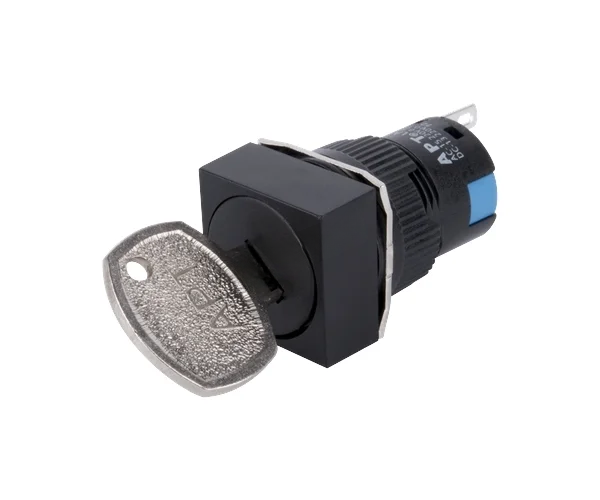

LA39-E(16mm) Series Key Switches, APT

Rated insulation voltage: AC250V 50Hz. Rated thermal current: 5A. Electrical endurance: 100,000 times for AC-15 50,000 times for DC-13. Rated current: AC-15 24V/2A, 110V/1A, 220V/0.5ADC-13 24V/0.7A, 110V/0.2A, 220V/0.1A

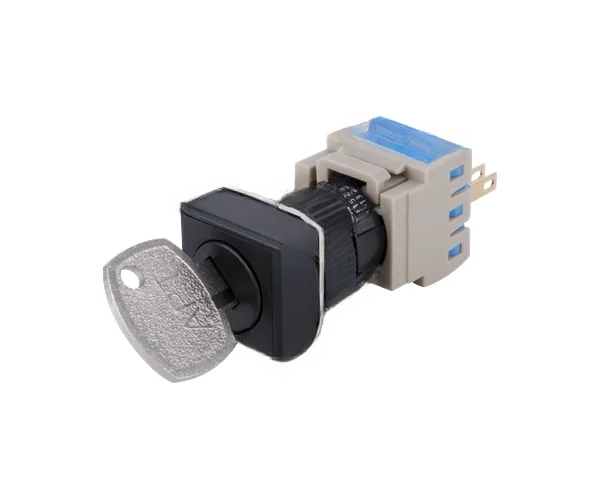

LA39-G(16mm) Series Key Switches, APT

Rated insulation voltage: AC250V 50Hz. Rated thermal current: 5A. Electrical endurance: 100,000 times for AC-15 50,000 times for DC-13. Rated current: AC-15 24V/2A, 110V/1A, 220V/0.5ADC-13 24V/0.7A, 110V/0.2A, 220V/0.1A

LA39-A(22mm) Series Key Switches, APT

Rated insulation voltage: AC660V. Rated thermal current: 10A. Electrical endurance: ≥600,000 times. Rated current: For quick-action type, AC-15 24V/10A, 48V/10A, 110V/5A, 220V/2.5A, 380V/1.5A, 660V/0.8A DC-13 24V/3.6A, 48V/1.8A, 110V/0.8A, 220V/0.4A, 440V/0.2A

LA39-B(22mm) Series Key Switches, APT

Rated insulation voltage: AC660V. Rated thermal current: 10A. Electrical endurance: ≥600,000 times. Rated current: For quick-action type, AC-15 24V/10A, 48V/10A, 110V/5A, 220V/2.5A, 380V/1.5A, 660V/0.8A DC-13 24V/3.6A, 48V/1.8A, 110V/0.8A, 220V/0.4A, 440V/0.2A

LA39-C(30mm) Series Key Switches, APT

Rated insulation voltage: AC660V. Rated thermal current: 10A. Electrical endurance: ≥600,000 times. Rated current: For quick-action type, AC-15 24V/10A, 48V/10A, 110V/5A, 220V/2.5A, 380V/1.5A, 660V/0.8A

LA39-E(16mm) Series Key Switches, APT

Rated insulation voltage: AC250V 50Hz. Rated thermal current: 5A. Electrical endurance: 100,000 times for AC-15 50,000 times for DC-13. Rated current: AC-15 24V/2A, 110V/1A, 220V/0.5ADC-13 24V/0.7A, 110V/0.2A, 220V/0.1A

LA39-G(16mm) Series Key Switches, APT

Rated insulation voltage: AC250V 50Hz. Rated thermal current: 5A. Electrical endurance: 100,000 times for AC-15 50,000 times for DC-13. Rated current: AC-15 24V/2A, 110V/1A, 220V/0.5ADC-13 24V/0.7A, 110V/0.2A, 220V/0.1A

PB3 Series

1 products

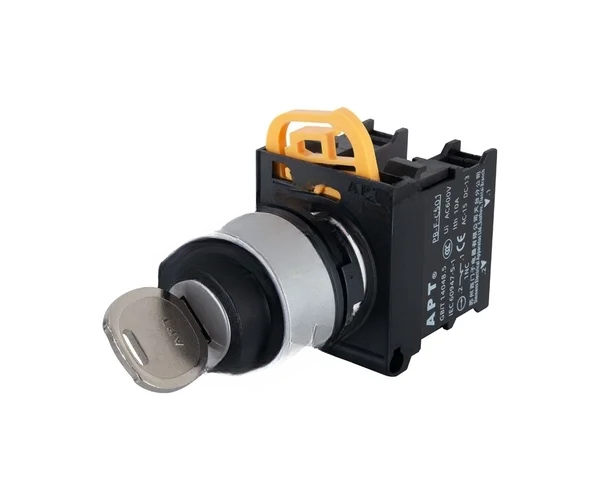

PB3(22mm) Series Key Selector Switch, APT

Mechanical: 50,000 times. Electrical: 500,000 times (Lowest load: DC24V 5mA). Mounting cut-outs: Φ22.3mm. Voltage grade: AC/DC 6V/12V/24V/36V/48V/110V/220V, AC 220V/380V

PB3(22mm) Series Key Selector Switch, APT

Mechanical: 50,000 times. Electrical: 500,000 times (Lowest load: DC24V 5mA). Mounting cut-outs: Φ22.3mm. Voltage grade: AC/DC 6V/12V/24V/36V/48V/110V/220V, AC 220V/380V

PB1 Series

1 products

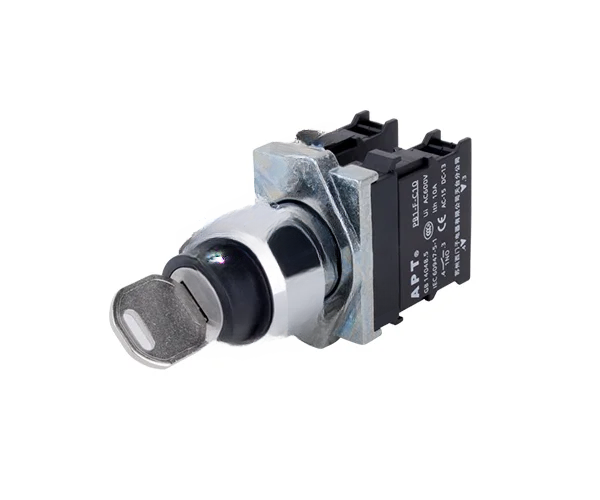

PB1(22mm) Series Key Selector Switch, APT

Rated insulation voltage: AC 600V. Rated thermal current: 10A. Electrical endurance: 500,000 times/AC-15 6A/220V/230V. Degree of protection: IP65

PB1(22mm) Series Key Selector Switch, APT

Rated insulation voltage: AC 600V. Rated thermal current: 10A. Electrical endurance: 500,000 times/AC-15 6A/220V/230V. Degree of protection: IP65
