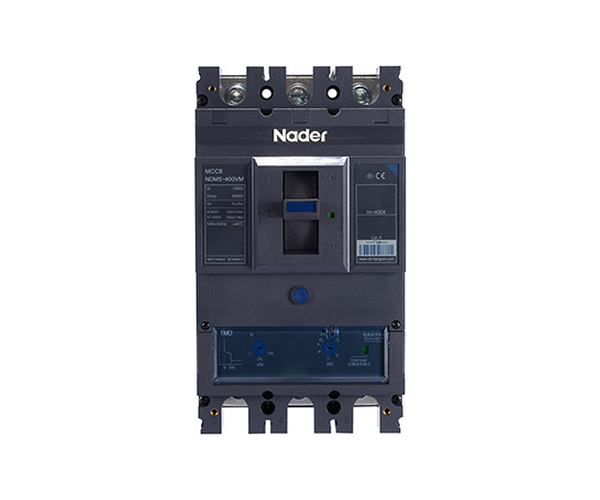

NDM5-250 Series AC MCCB, Nader

Rated current of frame Inm (A)

250A

Rated Voltage (Ue) (V)

AC230/AC240V, AC400/AC415V, AC690V

Rated Current (In) (A)

16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 250A

Rated Insulation Voltage Ui (V)

1000V

Rated impulse withstand voltage Uimp (V)

8000V

Power frequency withstand voltage (1min) (V)

3500V

Tripping Characteristics

L.M.H.U.R

Number of Poles

2P

3P

4P

Rated limit short-circuit breaking capacity level

L

M

H

L

M

H

U

R

L

M

H

Rated limit short-circuit breaking capacity Icu (kA)

AC230/240V

100

120

150

100

120

150

/

/

100

120

150

AC380/400/415V

/

/

/

70

100

150

/

/

70

100

150

AC690V

/

/

/

10

15

25

55

80

10

15

25

Rated operating short-circuit breaking capacity Ics (kA)

AC230/240V

100

120

150

100

120

150

/

/

100

120

150

AC380/400/415V

/

/

/

70

100

150

/

/

70

100

150

AC690V

/

/

/

10

15

25

55

80

10

15

25

Rated Frequency (Hz)

50/60Hz

Standards and Certificates

·CCC, TUV, CE

·IEC60947-2, GB/T 14048.2

Maintenance-free life

25000 times

15000 times

25000 times

Maintainable life

50000 times

30000 times

50000 times

Electrical Life

AC230/240V

10000 times

AC400/415V

10000 times

AC690V

4000 times

Flashover distance(mm)

≤50 (without terminal cover)

Wiring mode

/

Thread diameter

M8 (Torque value: 15N.m), M5 (Torque value: 2N.m)

Connection capacity

1mm²(6A), 1.5mm²(10A), 2.5mm²(12.5A, 16A, 20A), 4mm²(25A), 6mm²(32A), 10mm²(40A, 50A), 16mm²(63A), 25mm²(80A), 35mm²(100A), 50mm²(125A), 70mm²(160A), 95mm²(200A), 120mm²(250A)

Normal Working Environment

·Ambient Temperature: -35℃~+70℃

·Storage Temperature: -40℃~+75℃

·Altitude: ≤2500m

·Environmental Requirements: RoHS

·Relative Humidity: The relative humidity at an ambient temperature of +40℃ should not exceed 50%. A higher relative humidity is allowed at a lower temperature.

·The product can withstand the effects of wet air, salt mist and oil mist.

·Pollution Level: 3

·Protection class: IP20

Isolation Function

·The installation category of the circuit breaker connected to the main loop is: Category Ⅲ (power distribution and control level), The installation category of the circuit breaker not connected to the mainloop is: Category Ⅱ (load level)

·Installation Environment:

The product should be installed in places that are free from explosive media, media corrosive to metal, insulation damaging gas, and conductive dust, which should be also avoided from snow and rain.
