Siemens APT

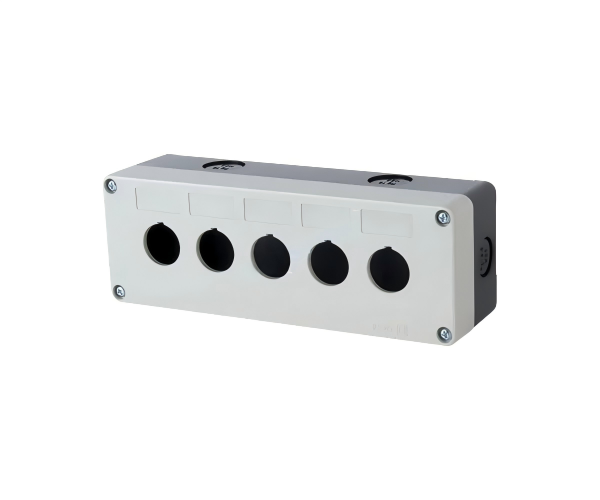

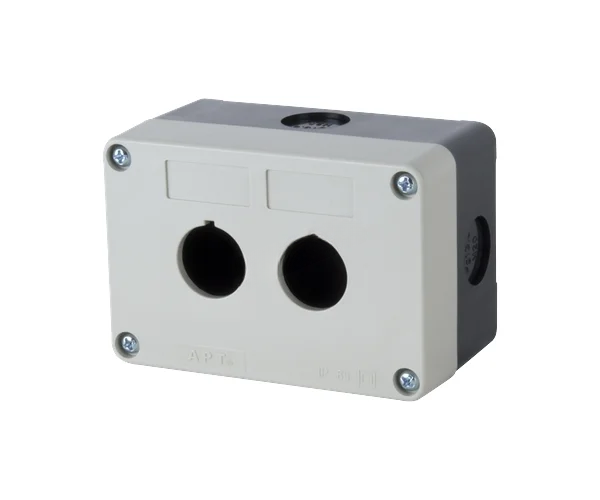

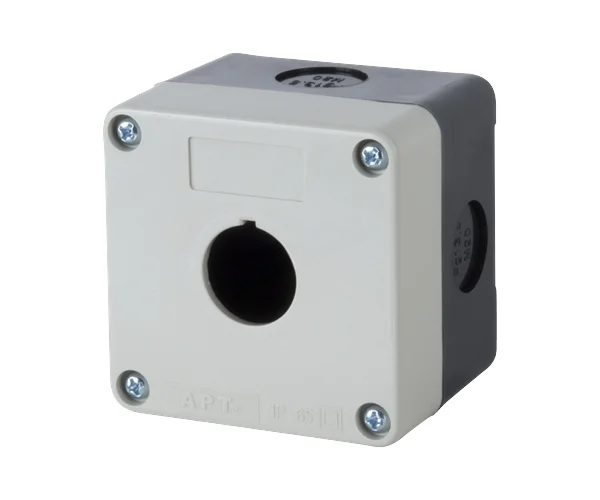

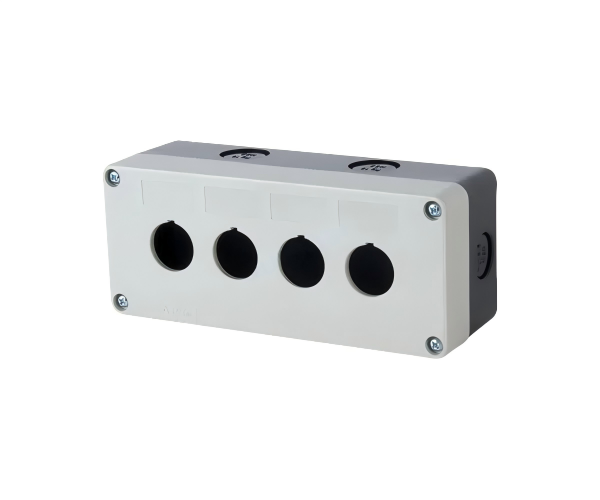

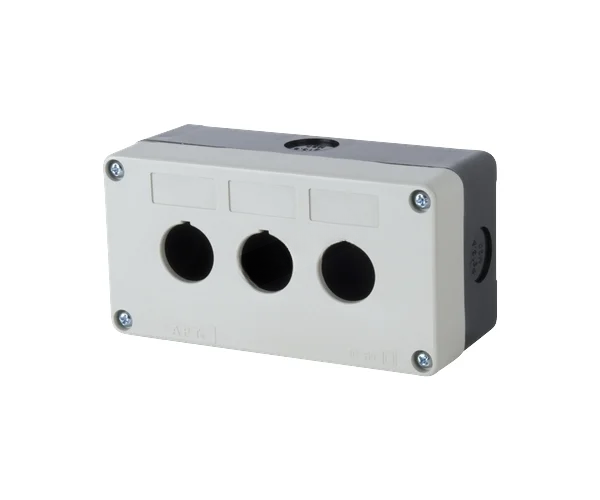

XK-A Series Plastic's Boxes, APT
Model: XK-A
Key specifications
- Degree of protection IP65
- Material ABS (general), PC polycarbonate (custom-made)
- Temperature range -40℃～80℃（ABS） -50℃～120℃（PC）
- Fire retardant rating V0（ABS） V2（PC）
Technical parameters
Seal ring | Silicone sponge rubber | |
Connection between the cover and the base | Four M4 metal screws | |
Enclosure installation | There are two Ø 4.2 holes at the bottom of the base designed for enclosure installation (installation hole dimension and hole pitch dimension line are engraved outside the base) | |
Internal component installation | Components will be directly installed on the cabinet cover; no installation fixing pin on the base. Inside the cabinet, the guide rail cannot be installed, for general wiring only. | |
Material | ABS (general) | PC (customized) |
Temperature range | -40 ℃ ~ +70 ℃ | -50 ℃ ~ +115 ℃ |
Flame retardant rating | V0 | V2 |
Protection class | IP65 | IP65 |
