NDB2Z-63 Series DC MCB, Nader

Model: NDB2Z-63

Key specifications

Rated current In (A) 1A, 1.2A, 1.5A, 1.6A, 2A, 3A, 4A, 5A, 6A, 7A, 8A, 10A, 12A, 13A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 60A, 63A
Rated voltage Ue (V) DC125/220/250/440/500/750/1000V

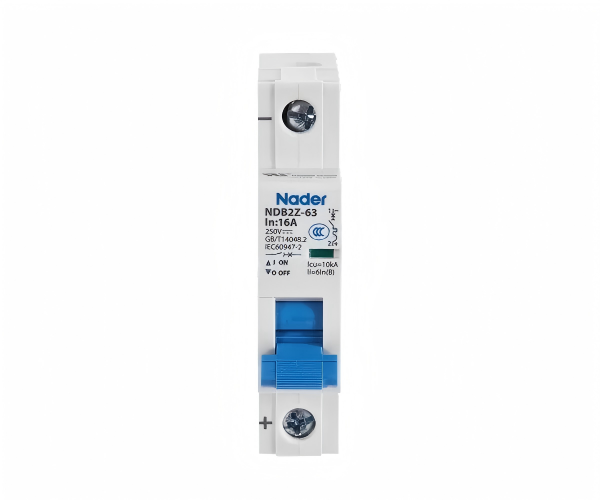

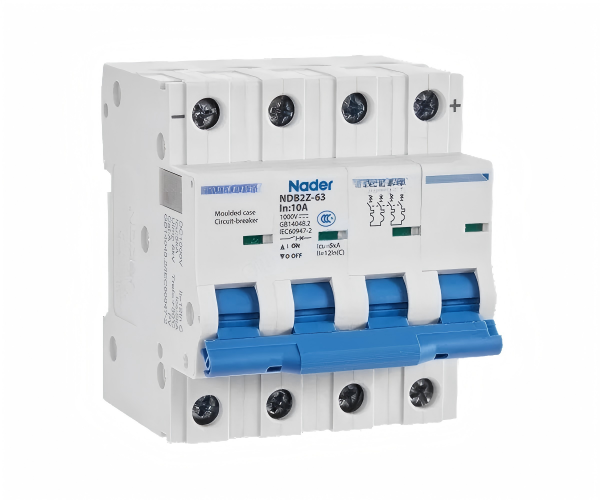

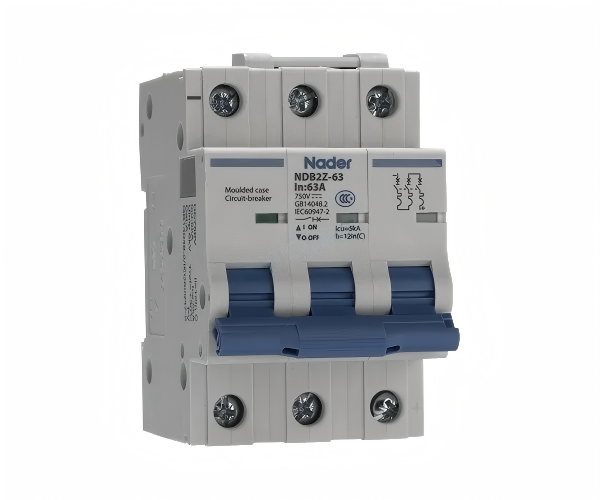

Poles 1P, 2P, 3P, 4P
Breaking capacity (Icu) 5kA, 10kA

Technical parameters

Rated Voltage (Ue)	DC125/220/250(1P), DC250/440/500(2P), UL1077: DC125, DC220, DC250, DC440; DC750(3P), DC1000(4P)
Rated Current (In)	1A,2A,3A,4A,5A ,6A,7A,8A,10A,12A,13A,15A,16A,20A,25A,30A,32A,40A,50A,63A
Tripping Characteristic	B：(6±20%)In, C：(12±20%)In
Tripping curve	B curve, C curve
Rated Breaking Capacity (Icn)	/
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	CCC, CE, TUV: 10kA(1P/2P) UL1077: DC125V(1P),DC250V(2P): 10kA, U1; DC220V(1P), DC440V(2P): 4.5kA,U1 3P/4P: 5kA
Rated Service Short-Circuit Breaking Capacity (Ics)	CCC, CE, TUV: DC125V(1P), DC220/250V(1P), DC250V(2P): 7.5kA; DC440/500V(2P): 6kA 3P/4P: 5kA
Number of Poles	1P, 2P, 3P, 4P
Standards and Certificates	·CCC, CE, TUV, UL1077 ·GB/T 14048.2, IEC 60947-2
Environmental Requirements	RoHS
Rated Insulation Voltage	1000V
Rated Impulse Withstand Voltage	4kV
Wiring	·Connection capability: 1mm² to 35 mm², 2 AWG,Max ·Connection screw M5, Torque: 2.0N.m
Mechanical Life	20000 times
Electrical Life	·10000 times (DC220/125V,1P, DC440/250V,2P) ·1500 times (DC220/250V,1P, DC440/500V,2P)
Working Condition	·Ambient temperature: －40℃~＋70℃ ·Storage temperature: －40℃~+80℃ ·Relative air humidity ≤95% ·Altitude ≤2000m ·Pollution degree: 3 ·Protection Degree: IP20 ·Service place without significant vibration and impact
Isolation function	·Practical breaking instructions ·View window within the green identification said contact in the off position
