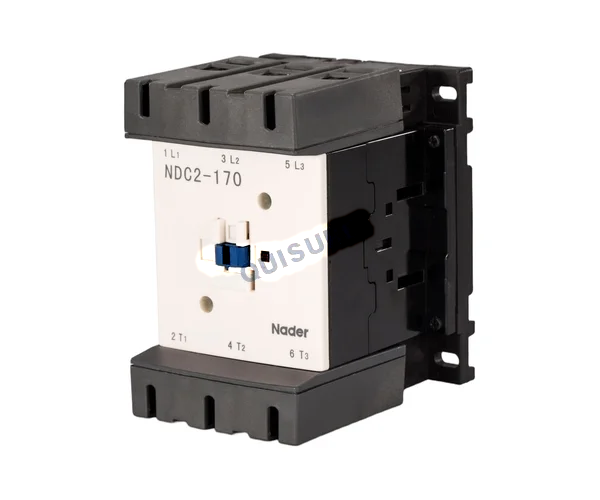

NDC2-150A Series AC Contactor, Nader
Model: NDC2-150A
Key specifications
- Rated current In (A) 150A
- Rated working voltage Ue AC220/230/240A, AC380/400/415A, AC660/690A
- Coil control voltage Uc (V) AC24/36/48/110/200/220/230/380/400/415/480V
- Poles 3P
Technical parameters
| Rated working current Ie (AC-3) A | 380/415V | 150A | ||||
| 660/690V | 107A | |||||
| Rated working current Ie (AC-4) A | 380/415V | 63A | ||||
| 660/690V | 35A | |||||
| Set heating current Ith (A) | 200A | |||||
| Rated working voltage Ue (V) | AC220/230/240V, AC380/400/415V, AC660/690V | |||||
| Rated insulating voltage Ui (V) | 1000V | |||||
| Rated Frequency (Hz) | 50/60Hz | |||||
| Standards and Certificates | ·CCC, CE, TUV ·GB/T 14048.4, GB/T 14048.5, IEC60947-4-1, IEC60947-5-1 | |||||
| AC-3 (6Ie,Ie) | Electrical life | 30×104times | ||||
| Operating frequency h−1 | 300 | |||||
| AC-4 (6Ie,6Ie) | Electrical life | 2×104times | ||||
| Operating frequency h−1 | 300 | |||||
| Auxiliary Contact | Agreed thermal current of the free air Ith/A | / | ||||
| Electrical life | AC-15(360VA) | / | ||||
| DC-13(33W) | ||||||
| Minimum Makeable Load | / | |||||
| Coil | Rated control voltage Us/V | AC(50/60HZ)：24V,36V,48V,110V,200V,220V,230V,380V,415V,480V | ||||
| Pull-in voltage range | 85%Us～110%Us | |||||
| Discharge voltage range | 20%Us～75%Us | |||||
| Coil power 50Hz(VA) | Pick-up | 50Hz | / | |||
| 50/60Hz | 350VA | |||||
| Maintain | 50Hz | / | ||||
| 50/60Hz | 22VA | |||||
| Mechanical life | 800×104 times | |||||
| Main circuit connection capacity (mm2) | Stranded (bare end) | 1wire | 10~120 mm2 | |||
| 2wires | 10~120+10~50 mm2 | |||||
| Stranded (ferruled) | 1wire | 10~120 mm2 | ||||
| 2wires | 10~120+10~50 mm2 | |||||
| Solid (bare end) | 1wire | 10~120 mm2 | ||||
| 2wires | 10~120+10~50 mm2 | |||||
| Control circuit connection capacity (mm2) | Cord | 1wire | 1~2.5 mm2 | |||
| 2wires | 1~2.5+1~2.5 mm2 | |||||
| Hard wire | 1wire | 1~2.5 mm2 | ||||
| 2wires | 1~2.5+1~2.5 mm2 | |||||
| Protection class | IP20 | |||||
| Installation Mode | Screw installation | |||||
| Working condition | ·Operation temperature:-25℃～+40℃ ·Storage Temperature: -60℃～+80℃ ·Altitude: ≤3000m. ·The relative air humidity at the installation site should not exceed 95%. Condensing should be avoided in the working environment. ·Pollution Level: 3 | |||||
