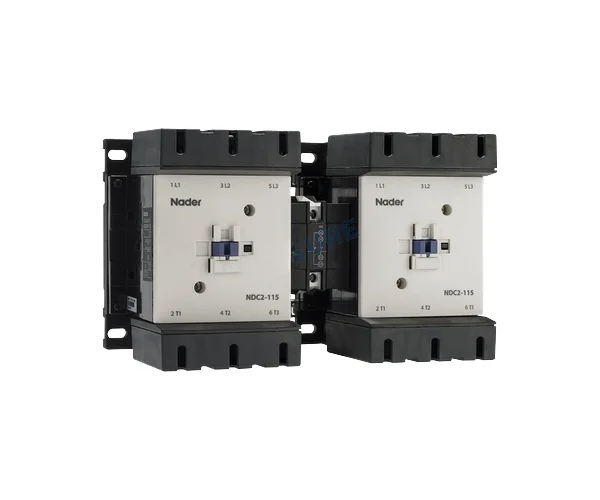

NDC2N-170A Series AC Contactor, Nader
Model: NDC2N-170A
Key specifications
- Rated current In (A) 170A
- Rated working voltage Ue AC220/230/240/380/400/415/660/690V
- Coil control voltage Uc (V) AC24/36/48/110/200/220/230/380/400/415/480V
Technical parameters
| Rated working current Ie (AC-3) A | 380/415V | 170A | |||||
| 660/690V | 118A | ||||||
| Rated working current Ie (AC-4) A | 380/415V | 75A | |||||
| 660/690V | 42A | ||||||
| Set heating current Ith (A) | 200A | ||||||
| Rated working voltage Ue (V) | AC220/230/240V, AC380/400/415V, AC660/690V | ||||||
| Rated insulating voltage Ui (V) | 1000V | ||||||
| Rated Frequency (Hz) | 50/60Hz | ||||||
| Standards and Certificates | ·CCC, CE, TUV ·GB/T 14048.4, GB/T 14048.5, IEC60947-4-1, IEC60947-5-1 | ||||||
| AC-3 (6Ie,Ie) | Electrical life | 30×104times | |||||
| Operating frequency h−1 | 300 | ||||||
| AC-4 (6Ie,Ie) | Electrical life | 2×104times | |||||
| Operating frequency h−1 | 300 | ||||||
| Auxiliary Contact | Agreed thermal current of the free air Ith/A | / | |||||
| Electrical life | AC-15(360VA) | / | |||||
| DC-13(33W) | |||||||
| Minimum Makeable Load | / | ||||||
| Coil | Rated control voltage Us/V | AC(50HZ、50/60HZ)：24V,36V,48V,110V,220/230V,380/415V | |||||
| Pull-in voltage range | 85%Us～110%Us | ||||||
| Discharge voltage range | 20%Us～75%Us | ||||||
| Coil power 50Hz(VA) | Pick-up | 50Hz | / | ||||
| 50/60Hz | 350VA | ||||||
| Maintain | 50Hz | / | |||||
| 50/60Hz | 22VA | ||||||
| Mechanical life | 300×104 times | ||||||
| Main circuit connection capacity (mm2) | Stranded (bare end) | 1wire | 10~120 mm2 | ||||
| 2wires | 10~120+10~50 mm2 | ||||||
| Stranded (ferruled) | 1wire | 10~120 mm2 | |||||
| 2wires | 10~120+10~50 mm2 | ||||||
| Hard wire | 1wire | 1~2.5mm2 | |||||
| 2wires | 1~2.5 mm2 | ||||||
| Main circuit connection capacity (mm2) | Stranded (ferruled) | 1wire | 1~2.5 mm2 | ||||
| 2wires | 1~2.5+1~2.5 mm2 | ||||||
| Hard wire | 1wire | 1~2.5 mm2 | |||||
| 2wires | 1~2.5+1~2.5 mm2 | ||||||
| Tightening torque N.m | Main circuit | 10~12N.m | |||||
| Auxiliary and control circuits | 0.8~1.2N.m | ||||||
| Protection class | IP20 | ||||||
| Installation Mode | Screw installation | ||||||
| Working condition | ·Operation temperature:-25℃～+40℃ ·Storage Temperature: -60℃～+80℃ ·Altitude: ≤3000m. ·The relative air humidity at the installation site should not exceed 95%. Condensing should be avoided in the working environment. ·Pollution Level: 3 | ||||||
