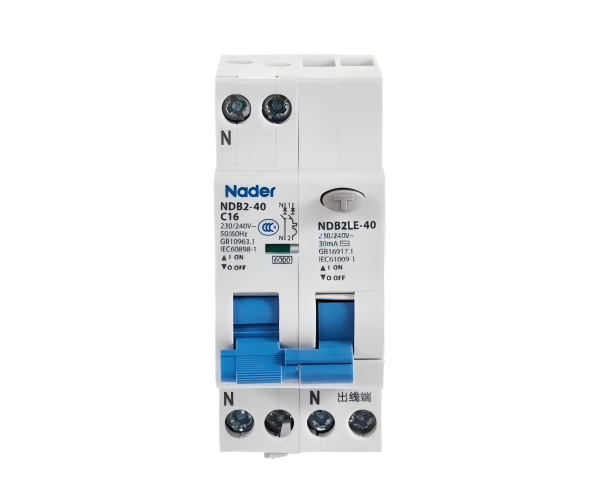

NDB2LE-40 Series RCCB, Nader
Model: NDB2LE-40
Key specifications
- Rated current In (A) 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A
- Rated voltage Ue (V) AC230/240V
- Poles 1P+N
- Breaking capacity (Icu) 6kA
Technical parameters
| Rated Voltage (Ue) | AC230/240 |
| Rated Current (In) | 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A |
| Tripping Characteristic | B: 3In～5In, C: 5In～10In, D: 10In～14In |
| Tripping curve | B curve, C curve, D curve |
| Rated Breaking Capacity (Icn) | / |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 6kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6kA |
| Number of Poles | 1PN |
| Standards and Certificates | ·CCC, CB ·GB/T 16917.1, GB/T 14048.2, IEC 61009-1 |
| Environmental Requirements | RoHS |
| Rated Insulation Voltage | AC500V |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Frequency | 50/60Hz |
| Wiring | ·Adopt tunnel type wiring Version ·Connection capability: 1mm² to 16 mm² ·Connection screw M4, Torque: 1.2N.m |
| Mechanical Life | 10000 times |
| Electrical Life | 10000 times |
| Working Condition | ·Ambient temperature: －25℃~＋60℃ ·Storage temperature: －25℃~+60℃ ·Relative air humidity ≤80% ·Altitude ≤2000m ·Pollution degree: 2 ·Protection Degree: IP20 ·Service place without significant vibration and impact |
| Isolation function | ·Practical breaking instructions ·View window within the green identification said contact in the off position |
