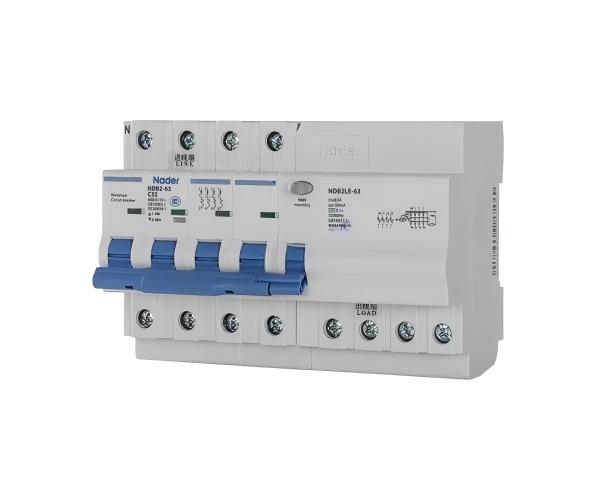

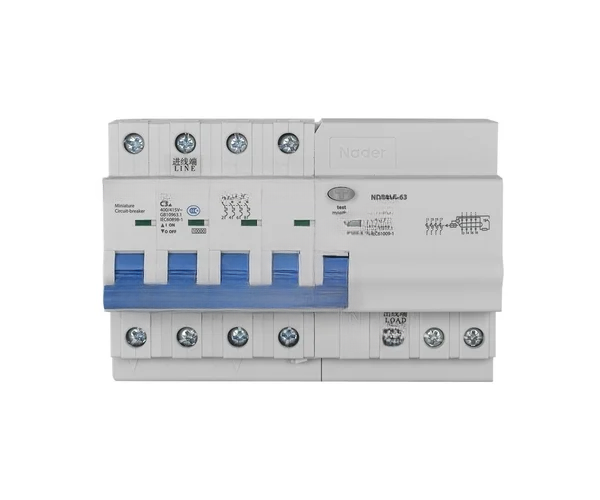

NDB2LE-63 Series RCCB, Nader

Rated Voltage (Ue)

AC230/240 (1PN, 2P)

AC380/400/415 (3P, 3P+N, 4P)

Rated Current (In)

1A, 2A, 4A, 6A, 10A,16A, 20A, 25A, 32A, 40A, 50A, 63A

Tripping Characteristic

B: 3In～5In, C: 5In～10In, D: 10In～14In

Tripping curve

B curve, C curve, D curve

Rated Breaking Capacity (Icn)

/

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

10kA

Rated Service Short-Circuit Breaking Capacity (Ics)

7.5kA

Number of Poles

1PN, 2P, 3P+N, 3P, 4P

Standards and Certificates

·CCC, CB

·GB/T 16917.1, GB/T 14048.2, IEC 61009-1

Environmental Requirements

RoHS

Rated Insulation Voltage

AC500V

Rated Impulse Withstand Voltage

4kV

Rated Frequency

50/60Hz

Wiring

·Adopt tunnel type wiring Version

·Connection capability: 1mm² to 35 mm²

·Connection screw M5, Torque: 2.0N.m

Mechanical Life

10000 times

Electrical Life

10000 times

Working Condition

·Ambient temperature: －25℃~＋60℃

·Storage temperature: －25℃~+60℃

·Relative air humidity ≤80%

·Altitude ≤2000m

·Pollution degree: 2

·Protection Degree: IP20

·Service place without significant vibration and impact

Isolation function

·Practical breaking instructions

·View window within the green identification said contact in the off position
