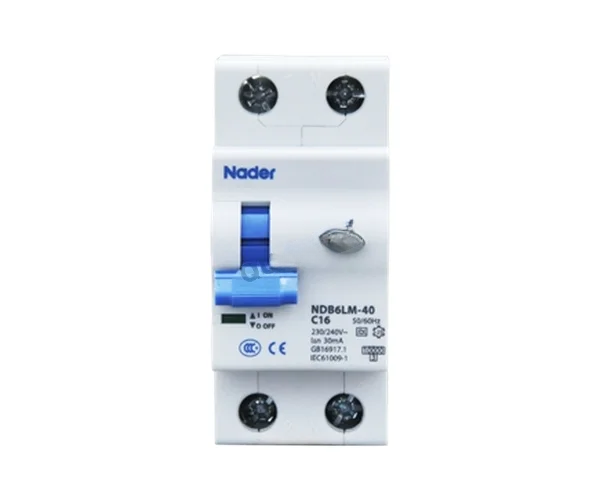

NDB6LM-40 Series RCCB, Nader

Rated Voltage (Ue)

AC230V

Rated Current (In)

6A,10A,16A,20A,25A,32A,40A(regular); 25A,32A,40A(with time-delay)

Tripping Characteristic

B: 3~5In, C: 5~10In

Tripping curve

Type B, Type C

Rated Breaking Capacity (Icn)

10kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

/

Rated Service Short-Circuit Breaking Capacity (Ics)

/

Number of Poles

1PN

Standards and Certificates

·CCC, CB, CE, TUV

·GB 16917.1, IEC 61009-1

Environmental Requirements

RoHS

Rated Insulation Voltage

/

Rated Impulse Withstand Voltage

4kV

Rated Frequency

50/60Hz

Wiring

·Adopt tunnel type wiring

·Connection capability: 1mm² to 25 mm²

·Nominal diameter screw:5mm

·Tighten screw torque:1.5N.m～2.5N.m

Mechanical Life

20000 times

Working Condition

·Ambient temperature: －25℃~＋40℃

·Relative air humidity ≤95%

·Altitude ≤2000m

·Pollution degree: 2

·Protection Degree: IP20

·Service place without significant vibration and impact

Isolation function

·Practical breaking instructions

·View window within the green identification said contact in the off position
