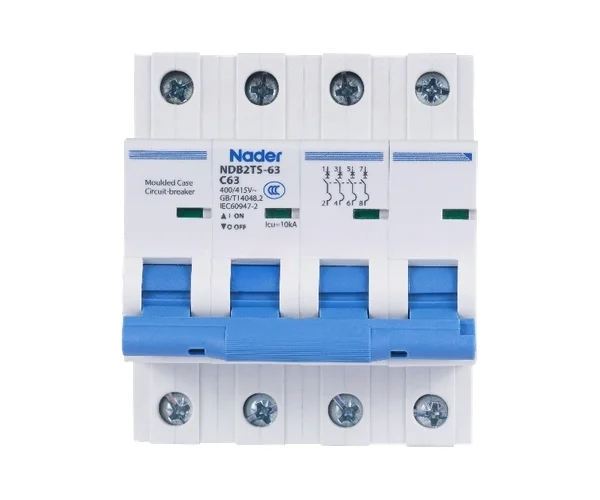

NDB2TS-63 Series AC/DC MCB, Nader

Rated Voltage (Ue)

CCC、CE、TUV： AC230/240 (1P) , AC400/415 (2/3/4P), DC60/80 (1P), DC80/125 (2P)

Rated Current (In)

1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Tripping Characteristic

B：(4±20%)In, C：(8±20%)In, D：(12±20%)In

Tripping curve

B curve, C curve, D curve

Rated Breaking Capacity (Icn)

/

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

CCC、CE、TUV：10kA

Rated Service Short-Circuit Breaking Capacity (Ics)

·7.5kA (AC230/240(1P), AC400/415V(2,3,4P))

·10kA (DC60/80V(1P), DC80/125V(2P))

Number of Poles

1P、2P、3P、4P

Standards and Certificates

·CCC、CE、TUV、 CB

·GB/T 14048.2 IEC 60947-2

Environmental Requirements

RoHS

Rated Insulation Voltage

AC 1000V

Rated Impulse Withstand Voltage

4kV

Rated Frequency

50/60Hz

Wiring

·Connection capability: 1mm² to 35 mm², 2 AWG,Max

·Connection screw M5, Torque: 2.0N.m

Mechanical Life

20000 times

Electrical Life

10000 times

Working Condition

·Ambient temperature: －40℃~＋70℃

·Storage temperature: －40℃~+80℃

·Relative air humidity ≤95%

·Altitude ≤2000m

·Pollution degree: 3

·Protection Degree: IP20
